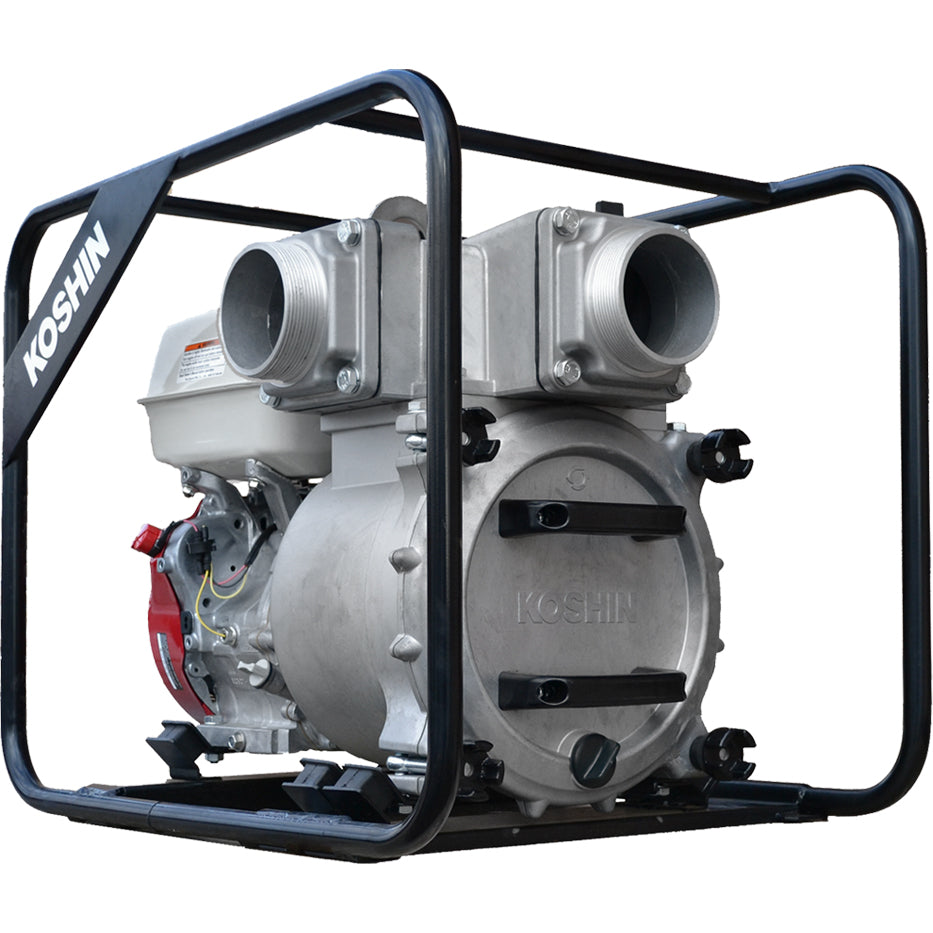

Koshin KTH-100S Trash Pump 541 GPM 4" - Honda Engine

Koshin KTH-100S Trash Pump 541 GPM 4" with Honda Engine

  • SKU: SKU: KTH100S

    • $3,691.00
      Unit price per

    Shipping calculated at checkout.

    Only 0 left!


    • Silicon Carbide Mechanical Seals for Increased Abrasive Resistance, Longer Life, and Less Maintenance
    • Case Iron Impellers Blended with Hi-Chrome, for Extreme Durability and Erosion Resistance
    • Front Covers are Removable Without Disassembly of Hoses. Easy and Quick Access, for Cleaning our Debris, or Pump Repair
    • Volutes are Constructed of Spheroidal Graphite Ductile Iron, Eliminating the Need for a Wear Plate, Increasing Durability, and Longer Life
    • Pump Housings are Made of Die Cast Aluminum for Strength, Weight Reduction, and Portability
    • Rugged Powder Coated Roll Cages
    • Honda Engines with Low Oil Shut Off
    • Three Year Limited Warranty on Pump Ends


    Suction, Discharge Size 4″ NPT
    Maximum Output 541 GMP
    Maximum Discharge Head 98 ft.
    Maximum Suction Lift 26 ft.
    Maximum Pressure 42.4 psi
    Engine Model Honda GX390
    Engine Displacement 389 cc
    Engine Horse Power 11.7 hp
    Fuel Tank Capacity 1.60 gal.
    Full Load Run Time 1.5 hours
    Fuel Type Unleaded Gasoline
    Packaged Weight 201 lbs.
    Packaged Dimensions (LxWxH) 30″ x 24″ x 25″



    Koshin Pumps Performance Curves Graph
