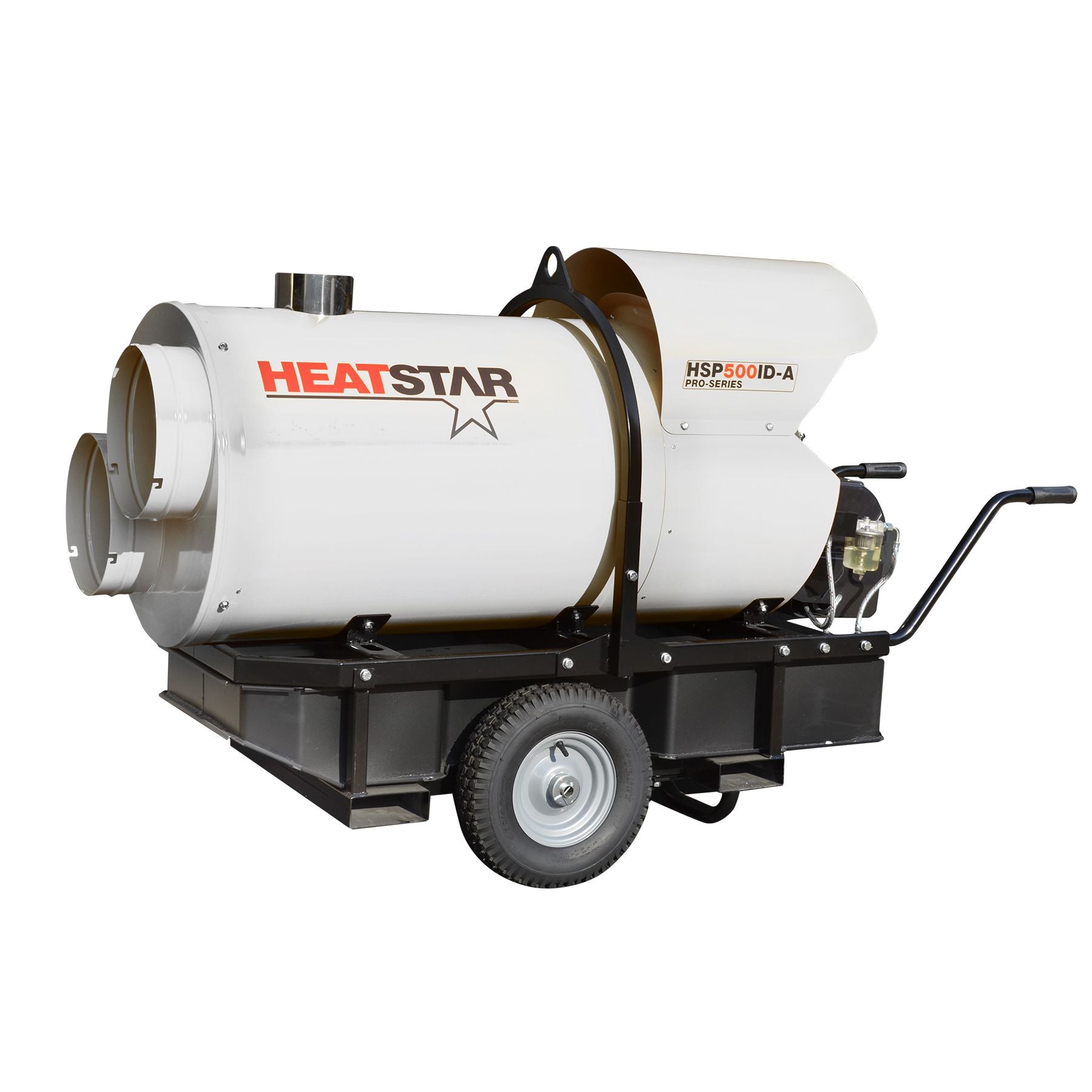

HeatStar Indirect Fired Construction Heater HSP500ID-A — 400,000 BTU/HR - 500,000 BTU/HR Max
HeatStar Indirect Fired Construction Heater HSP500ID-A — 400,000 BTU/HR - 500,000 BTU/HR Max
Indirect-fired heating for large construction, industrial, rental and temporary-space applications.
Couldn't load pickup availability
- All orders ship from Ontario, Canada
- We accept returns within 30 days of delivery
- Planning a large heating job? Tell us about your space and application. We'll help you determine whether this heater is appropriate for the job.
Features
- 400,000 BTU/HR - 500,000 BTU/HR Max
- Heavy duty frame
- Lift bracket
- Heat exchanger to keep exhaust gas and heated air separate
- 46 gallon tank capacity
- Powerful fans ensure high static pressure
- Long life stainless steel combustion chamber
- Electronic flame control
- Water resistant flame control box
- Automatic safety and control devices
- Optional thermostat available for constant temperature control
- Durable powder coated finish
- Heavy duty duct adapter available
- UL Certified
Description
The HeatStar PRO-SERIES Indirect Fired Heater (HSP500ID-A) is a top choice for large industrial and rental applications. Featuring factory-installed dual 12" duct adapters, this heater is compatible with up to 100 ft of HeatStar high quality high temperature ducting, making it the perfect solution for evenly distributing warm, clean air in event tents and construction sites. You have the option to place the unit outdoors and duct the heated air inside, or for greater cost efficiency, you can position the heater within the space to be heated and vent the exhaust outside. No matter your preference, the indirect heat provided by this heater ensures optimal comfort and safety.
Specifications
| Model | HSP500ID-A |
|---|---|
| Weight | 484 lbs |
| Fuel Type | Kerosene, Diesel 1# or 2#, Fuel Oil, Jet A fuel |
| Tank Capacity (Gal) | 46 |
| Ignition | Continuous |
| Electrical Rating | 120v, 60 HZ, 13 Amp |
| Air Volume (CFM) | 4032 |
| Heated Fuel Filter | Standard |
| Heated Nozzle | No |
| Clearance to Combustibles: Horizontal | 6 ft |
| Adapter | F105126 Single (16") / Standard Dual 12" Attached |
| Recirculating Ducting | F105127 Adapter Ring / F105128 24in x 25ft Duct and Clamp |
| Duct Length Max | 100 ft |
| Duct Diameter | Standard Dual (12in) or Single F105126 (16in) |
| Multiple Ducting Optional | F150040 12in x 25ft / F150050 16in x 25ft |
| Wheel Type | Pneumatic |
| Thermostat Optional | F105108 Analog (33') / F105106 Digital (33') |
| Dimension (L x W x H) | 64" x 27" 60" |
| Warranty | 1 Year Limited |
| Schematic | Click to view |
HSP500ID-A Indirect Fired Heater
Frequently Asked Questions
What is the HeatStar HSP500ID-A designed for?
The HeatStar HSP500ID-A is a high-output indirect-fired construction heater designed for large industrial, rental, construction and temporary heating applications. It can deliver up to 500,000 BTU/hr maximum output and 4,032 CFM of heated air, making it suited to large-volume applications where substantial, ducted heat is required.
It can be used for applications such as construction sites, large temporary structures, event tents and industrial spaces. Actual heating requirements depend on factors such as space size, insulation, outdoor temperature and ventilation.
What does "indirect-fired" mean?
An indirect-fired heater uses a heat exchanger to keep combustion exhaust separate from the heated air.
The fuel is burned inside the heater to generate heat. That heat passes through the heat exchanger, while the combustion exhaust is vented separately. The result is heated air that can be ducted into the space without mixing the combustion gases into the heated airflow.
This makes indirect-fired heating particularly useful for applications where clean, dry heated air is important.
Is this a 400,000 BTU or 500,000 BTU heater?
Both numbers are relevant.
The HSP500ID-A has a 400,000 BTU/hr input rating and up to 500,000 BTU/hr maximum output. HeatStar identifies the model as the HSP500ID-A 400,000 BTU/hr indirect-fired heater, with a maximum rating of 500,000 BTU/hr.
For clarity, we describe it as:
400,000 BTU/hr input / 500,000 BTU/hr maximum
How large of an area can the HSP500ID-A heat?
HeatStar's specifications list a heating area of approximately 10,000 sq. ft. for the HSP500ID-A.
However, square footage alone isn't enough to determine whether this heater is appropriate. Insulation, ceiling height, outdoor temperature, building construction, desired temperature and air leakage can all significantly affect heating requirements.
For a large or unusual application, we recommend confirming your requirements before ordering.
What type of fuel does the HSP500ID-A use?
The HSP500ID-A is designed for:
- Kerosene
- #1 or #2 diesel fuel
- #1 or #2 fuel oil
- Jet A / JP8
The published specifications list fuel consumption at approximately 3.6 gallons per hour. Fuel consumption will vary with operating conditions and output.
Always use the fuel types and operating procedures specified in the manufacturer's current documentation.
How much ducting can I use with this heater?
The HSP500ID-A supports up to 100 feet of ducting according to HeatStar's specifications. It ships with factory-installed dual 12-inch duct adapters. A single 16-inch duct adapter is also available as an accessory.
Available ducting and accessories can be selected according to your application and desired airflow configuration.
Important: Ducting configuration, maximum lengths and installation requirements should follow the manufacturer's specifications.

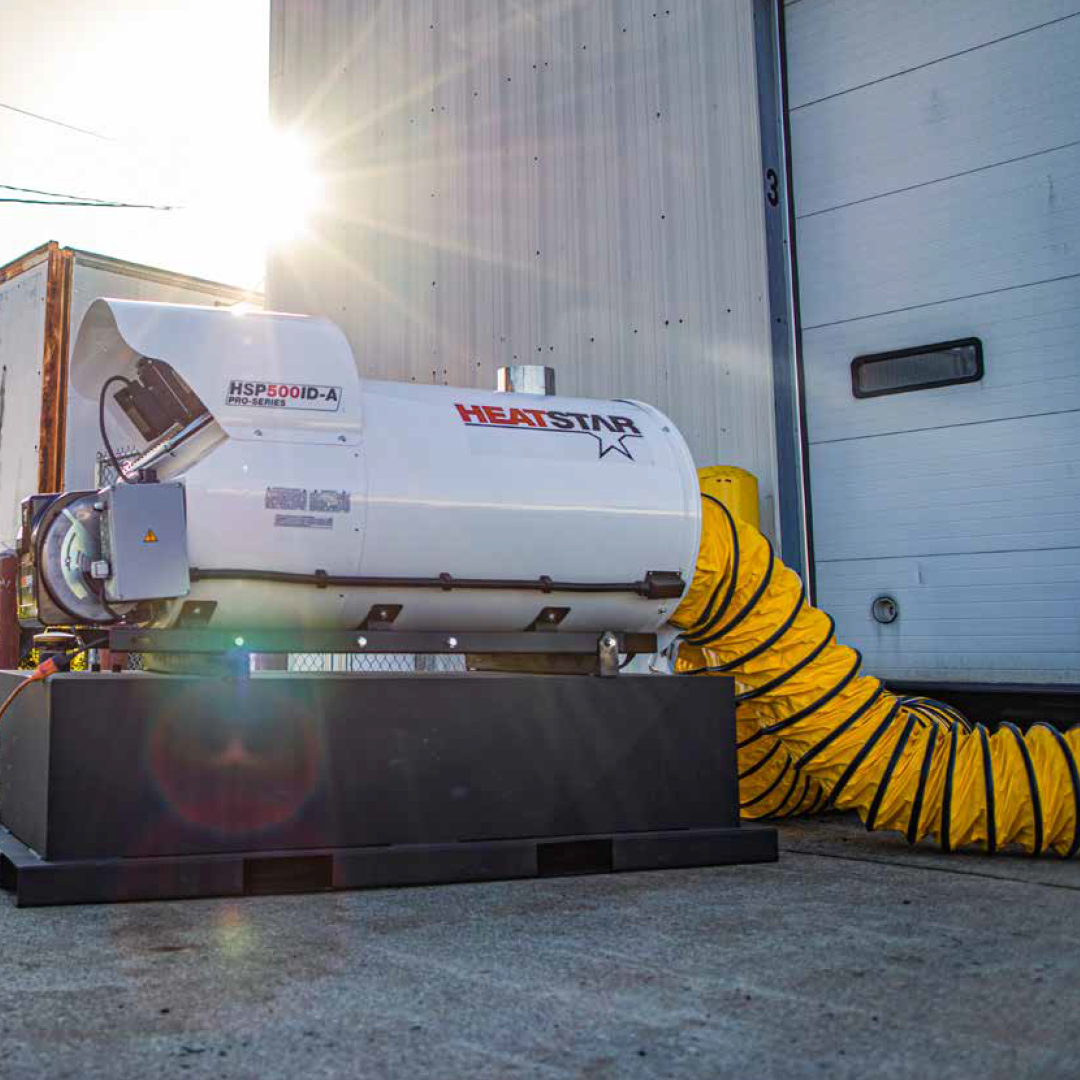

Can the heater be placed outside and ducted into a building or tent?
Yes. The HSP500ID-A is designed to allow the heater to be positioned outside the space being heated and for warm air to be ducted into the space. HeatStar also describes configurations where the heater is positioned within the space and the exhaust is vented outside, subject to the manufacturer's installation and safety requirements.
The appropriate configuration depends on the application, ventilation, clearances and local requirements.
Always follow the manufacturer's installation instructions and applicable codes.
What electrical power does the HSP500ID-A require?
The heater operates on 120V, 60 Hz electrical power and is rated at approximately 13.4 amps in the manufacturer's specifications.
Before ordering, make sure the available electrical supply, extension cords and other equipment meet the requirements specified in the owner's manual.
Does the HSP500ID-A include a thermostat or ducting?
The heater comes with factory-installed dual 12-inch duct adapters. Thermostats are available separately, including analog and digital options.
Other accessories are also available, including:
- 12-inch and 16-inch flexible heat duct
- Single 16-inch duct adapter
- Digital thermostat
- Analog thermostat
- Air recirculation components
If you're planning a complete heating setup, contact LionCove before ordering and we can help you identify the equipment and accessories you'll need.
How do I maintain the HSP500ID-A and get replacement parts?
The HSP500ID-A is commercial equipment designed for long-term use, and HeatStar describes the larger Pro-Series indirect-fired heaters as being designed for "once a year" maintenance.
LionCove specializes in power equipment and replacement parts, so we encourage customers to think beyond the initial purchase: maintain your equipment, replace worn components when appropriate, and keep good equipment working for as long as possible.
Need a replacement part or help identifying a component? Contact LionCove or browse our HeatStar parts selection.
